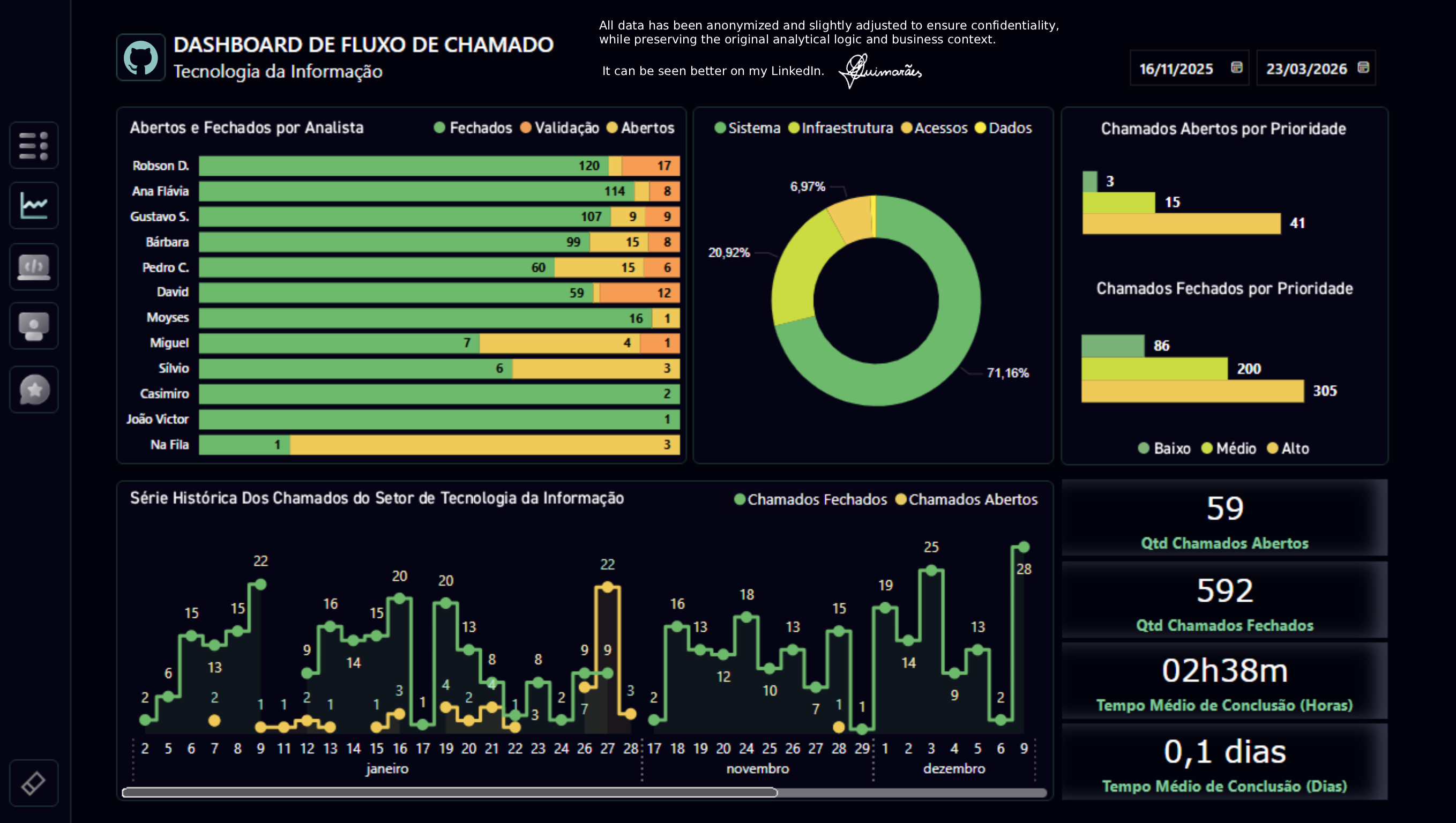

Fluxo de Chamados
-- Project: IT SLA Dashboard
-- Description: SQL queries used for SLA analysis, runtime evaluation, and satisfaction metrics.
-- 1. Main Ticket Workflow Extraction
-- Description: Retrieves latest version of service requests and links workflow + assignment data.
SELECT
wf.process_id,
req.requester_name,
req.ticket_type,
req.ticket_title,
wf.workflow_status,
req.business_unit,
ISNULL(assignee.analyst_id, 'Waiting for Assignment') AS analyst_id,
COALESCE(assignee.assignment_start_date, wf.process_start_date) AS start_date,
assignee.assignment_end_date,
assignee.total_runtime,
req.priority,
req.system_name,
req.service_category,
req.incident_category,
req.incident_justification,
req.is_project_related,
req.waiting_for_third_party,
req.corrective_reason,
req.access_type,
req.purchase_type,
req.purchase_item,
req.access_issue_type,
req.unavailable_resource,
req.installation_reason,
req.maintenance_type,
req.billing_impact,
req.project_name
FROM service_requests req
INNER JOIN (
SELECT
document_id,
MAX(version_number) AS latest_version
FROM service_requests
GROUP BY document_id
) latest_req
ON req.document_id = latest_req.document_id
AND req.version_number = latest_req.latest_version
INNER JOIN workflow_processes wf
ON wf.request_document_id = req.document_id
LEFT JOIN (
SELECT
t.process_id,
t.analyst_id,
t.assignment_start_date,
t.assignment_end_date,
t.total_runtime
FROM workflow_tasks t
INNER JOIN (
SELECT
process_id,
MAX(task_sequence) AS latest_task_sequence
FROM workflow_tasks
WHERE analyst_id IN (
'analyst_01',
'analyst_02',
'analyst_03',
'analyst_04',
'analyst_05'
)
AND analyst_id NOT IN ('system_auto')
AND analyst_id NOT LIKE 'queue%'
AND (
task_notes IS NULL
OR task_notes = ''
OR task_notes NOT LIKE '%Task automatically assigned%'
)
GROUP BY process_id
) latest_task
ON t.process_id = latest_task.process_id
AND t.task_sequence = latest_task.latest_task_sequence
WHERE t.analyst_id IN (
'analyst_01',
'analyst_02',
'analyst_03',
'analyst_04',
'analyst_05'
)
AND t.analyst_id NOT IN ('system_auto')
AND t.analyst_id NOT LIKE 'queue%'
AND (
t.task_notes IS NULL
OR t.task_notes = ''
OR t.task_notes NOT LIKE '%Task automatically assigned%'
)
) assignee
ON assignee.process_id = wf.process_id
WHERE wf.workflow_status IN ('Open', 'Completed');
-- 2. Runtime Analysis for IT Tickets
-- Description: Identifies tickets with high resolution time
SELECT
t.process_id,
t.analyst_id,
t.total_runtime,
wf.process_start_date
FROM workflow_tasks t
INNER JOIN workflow_processes wf
ON wf.process_id = t.process_id
INNER JOIN service_requests req
ON req.process_id = t.process_id
WHERE
t.analyst_id NOT IN ('system_auto')
AND wf.process_type = 'IT_Request'
AND t.analyst_id IN (
'analyst_01',
'analyst_02',
'analyst_03',
'analyst_04',
'analyst_05'
)
AND t.analyst_id NOT LIKE 'queue%'
AND wf.process_start_date >= '2025-01-01'
AND wf.workflow_status = 'Completed'
AND t.total_runtime >= 200
AND req.waiting_for_third_party <> 'yes'
AND req.is_project_related <> 'yes'
ORDER BY
t.process_id,
t.task_sequence;
-- 3. Closed Ticket Satisfaction Analysis
-- Description: Extracts satisfaction survey responses for completed IT tickets
SELECT
req.process_id,
req.requester_name,
req.ticket_status,
req.business_unit,
req.ticket_type,
req.analyst_service_rating,
req.service_satisfaction,
req.communication_clarity_rating,
req.solution_effectiveness_rating,
wf.workflow_status
FROM service_requests req
INNER JOIN (
SELECT
document_id,
MAX(version_number) AS latest_version
FROM service_requests
GROUP BY document_id
) latest_req
ON req.document_id = latest_req.document_id
AND req.version_number = latest_req.latest_version
INNER JOIN workflow_processes wf
ON wf.request_document_id = req.document_id
WHERE wf.workflow_status = 'Completed'
AND req.ticket_type IN ('Access', 'System', 'Infrastructure', 'Data')
AND (
req.analyst_service_rating <> 'Not Answered'
OR req.service_satisfaction <> 'Not Answered'
);
